ANDERSON | RBM PRO 2000 (WITH BRAKES)

ANDERSON RBM PRO 2000 (WITH BRAKES)

Request Quote

Hi, my name is

Invalid value

and I would like to get more information on this ANDERSON RBM PRO 2000 (WITH BRAKES) .
I can be reached by email at

Invalid value

or by phone at

Invalid value

Part #:	RBM PRO 2000 (WITH BRAKES)
Mfg:	ANDERSON
Category:	TRACTOR ATTACHMENTS
Sub-Category:	BALE TRAILER
Industry:	AGRICULTURAL
Machine Size:	MINIMUM 130HP
Attachment Size:	Round bale 5 ft x 5 ft diameter 20 none wrapped bales 14 wrapped bales
List Price:	Call 770-908-9439 for Price
Inventory:	RBM PRO 2000 (WITH BRAKES) : 0 AFS / 0 QOH / 0 QOO / 0 ISBF

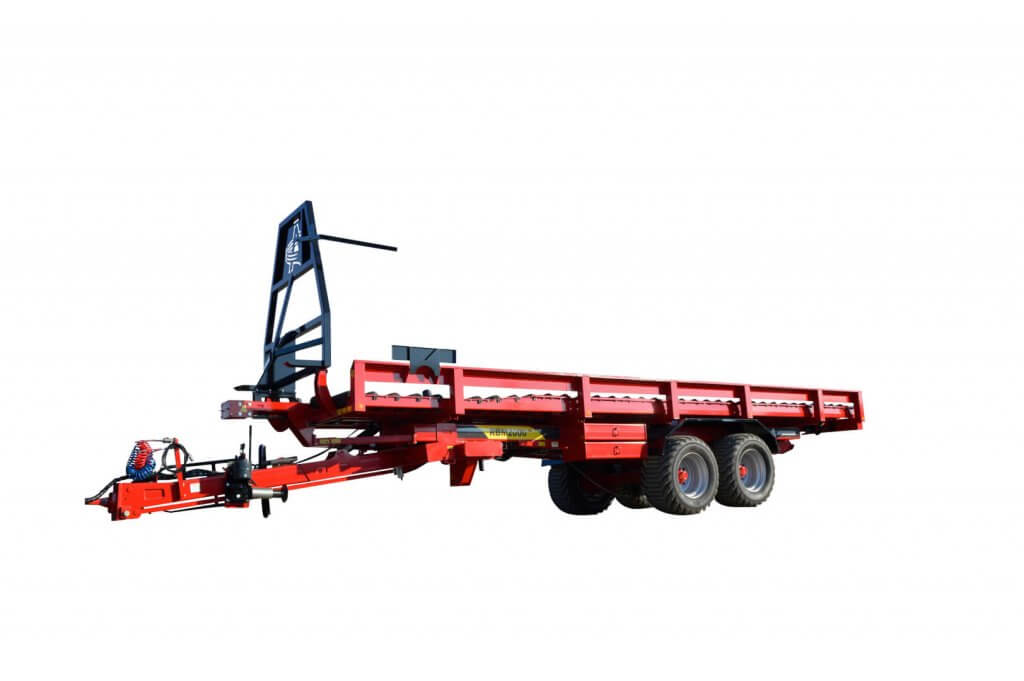

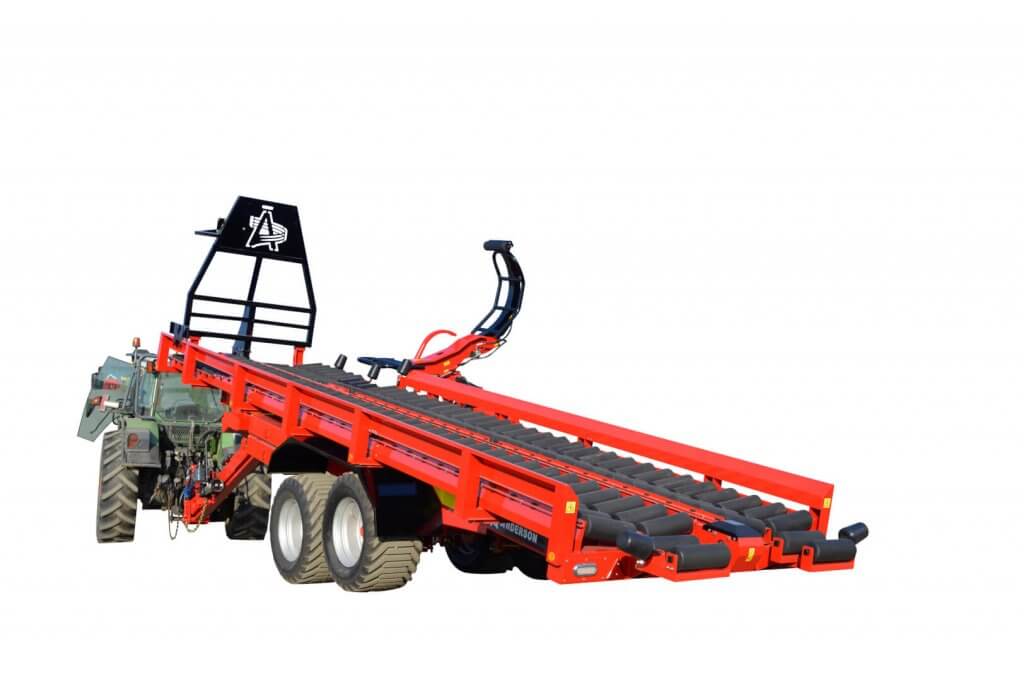

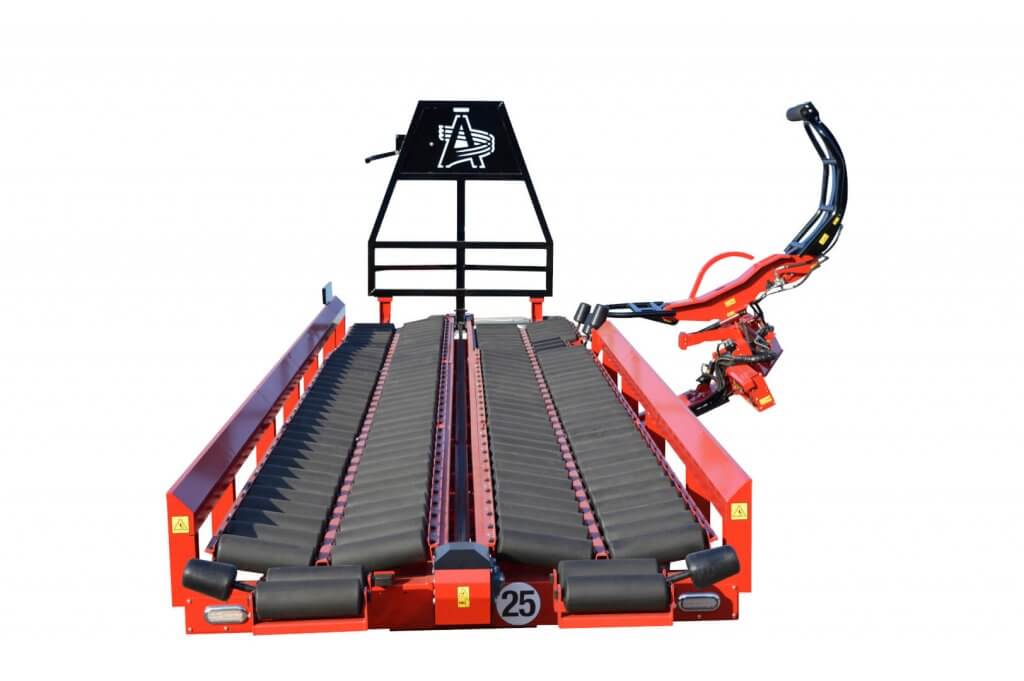

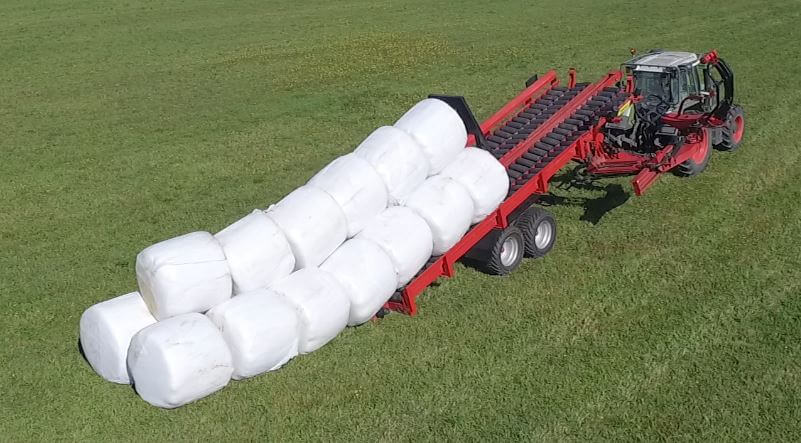

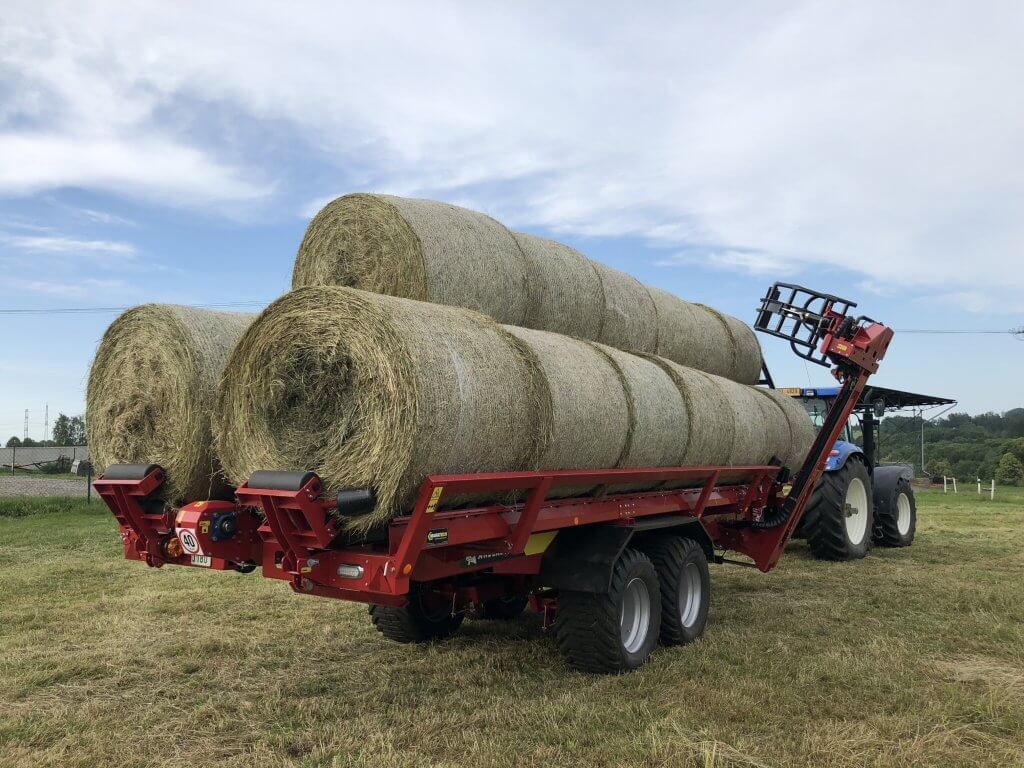

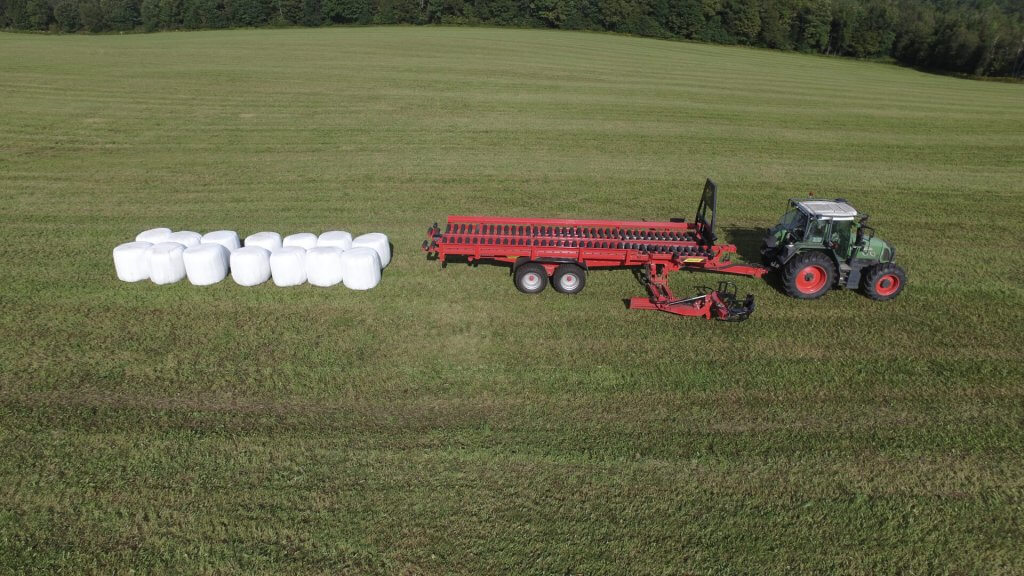

The Anderson Group is proud to introduce the world’s first self-loading bale carrier capable of handling efficiently wrapped silage bales. The RBMPRO series can move nearly twice as many bales as any traditional platform system. It reduces the time spent in the field, the labor, as well as the fuel consumption. This allows more time for the farmer or the contractor to spend it where it counts! Finally, the superior productivity of the RBMPRO series helps to free the field as quickly as the baler passes through it, all without risks of breaking the plastic.

Preview

DRONE VIDEO

360 DEGREE

NC ALBEMARLE START UP

Feature

Description

Photo (if available)

Price

Width – A

8' 5" (2

$0.00

Overall width (inlcuding loading arm)

8' 5" (2

$0.00

Height – C

12' 3" (3

$0.00

Overall height (inlcuding loading arm)

12' 3" (3

$0.00

Bed height

5' 2" (1

$0.00

Overall length – E

38' 8'' (11

$0.00

Overall weight

14500 lb (6577 kg)

$0.00

Weight on tow bar

3186 lb (1445 kg)

$0.00

Round bale diameter

Jusqu’à 5' (1

$0.00

Square bale

n/a

$0.00

Bale type

wrapped Baleage & dry hay

$0.00

Loading capacity on axle (including bale carrier weight)

48000 lb (21 772 kg)

$0.00

Unloading angle

29' 2'' (8

$0.00

Hydraulic push ramp system

Standard

$0.00

Full charge indicator

Standard

$0.00

Double plate hitch

Standard

$0.00

Road lights

Standard

$0.00

Tandem axle

Standard

$0.00

Safety chain

Grabber

$0.00

Self-loading arm design

Standard

$0.00

Able to load a second row of bales

n/a

$0.00

Tires

15 Gal/min (60 litres/min)

$0.00

Tractor Minimum Hydraulic Flow

2500 psi

$0.00

Tractor Minimum Hydraulic Pressure

130 HP

$0.00

Tractor Minimum HP requiements

$0.00

Tractor Remote outlets required

n/a

$0.00

PTO Speed / PTO shaft

$0.00

Controls

$0.00

Round bale 4' × 4' diameter (1.2 m × 1.2 m)

$0.00

Round bale 4' × 5' diameter ( 1.2 m × 1.5 m)

$0.00

Round bale 6' diameter (1.2 m × 1.6 m)

n/a

$0.00

Round bale 5' × 5" diameter ( 1.5 m × 1.5 m)

$0.00

Round bale 5' × 6' diameter (1.5 m × 1.6 m)

n/a

$0.00

Square bale 3' × 3' × 8' long (90 cm × 90 cm × 2.4 m)

n/a

$0.00

Square bale 4' × 3' × 8' long (1.2 m × 90 cm × 2.4 m)

n/a

$0.00

Square bale 4' × 4' × 8' long (1.2 m × 1.2 m × 2.4 m)

n/a

$0.00

On a distance of 0.62 mile 3' × 4'

$0.00

On a distance of 1.24 mile 3' × 4'

$0.00

On a distance of 1.86 mile 3' × 4'

$0.00

On a distance of 2.48 miles 3' × 4'

$0.00

On a distance of 3.10 miles 3' × 4'

$0.00

Tandem axle	Standard
Tandem axle with brakes	Optional
Self-Steering axle with brakes	Optional
Safety chain	Standard
Self-loading arm design	Hydraulic clamp
Able to load a second row of bales	Telescopic arm
Tires	550/45-22,5
Caméra (de recul)	Standard
Tractor minimum hydraulic flow	2800 psi (190 bar)
HP requirements	130 HP
Double hydraulic connections required	3 + LS
PTO Speed/ PTO shaft	N/A
Controls	Touchscreen display

Width – A	8 ft 4 in (2,55 m)
Overall width (inlcuding loading arm)	8 ft 4 in (2,55 m)
Height – B	12 ft 2 in (3.71m)
Overall height (inlcuding loading arm)	12 pi 6 po (3.81m)
Bed height - E	5 pi (1,55 m)
Overall length – D	38 pi 5 po (11,76 m)
Overall weight	14 990 lb (6800 kg)
Empty Weight on tow bar***	3415 lb (1550 kg)

Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m)	In 2 rows = 14nIn 3 rows = 19 or 20
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m)	In 2 rows = 14nIn 3 rows = 19 or 20
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m)	n/a
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m)	In 2 rows = 12nIn 3 rows = 16 or 17
Round bale 5 ft x 6 ft diameter (1,5 m x 1,8 m)	n/a
Square bale 3 ft x 3 ft x 8 ft long (90 cm x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 3 ft x 8 ft long (1,2 m x 90 cm x 2,4 m)	n/a
Square bale 4 ft x 4 ft x 8 ft long (1,2 m x 1,2 m x 2,4 m)	n/a
Loading arm lifting capacity	2500 lb (1135 kg)
Total weight including load	42 000 lb (19 000 kg)
Champ-1

Round bale diameter	Up to 5 ft (1,5 m)
Square bale	n/a
Bale type	Baleage/dry hay/straw/ Wrapped bale (min. 6 layers of film)
