Scorpion 430 PLUS - Basic Front
With Rotor flex the cutting head is always in the driver's natural field of vision. Rotor Flex has a double pivot joint which enables you to move the cutting head forward, so it is in the drivers field of vision. The cutting head can also be moved behind the vehicle which is useful for verge mowing on small roads with oncoming traffic. This option adds 6,000 dollars to the unit price but will more than double the productivity of the saw while the operator has it in the air cutting branches and topping trees.

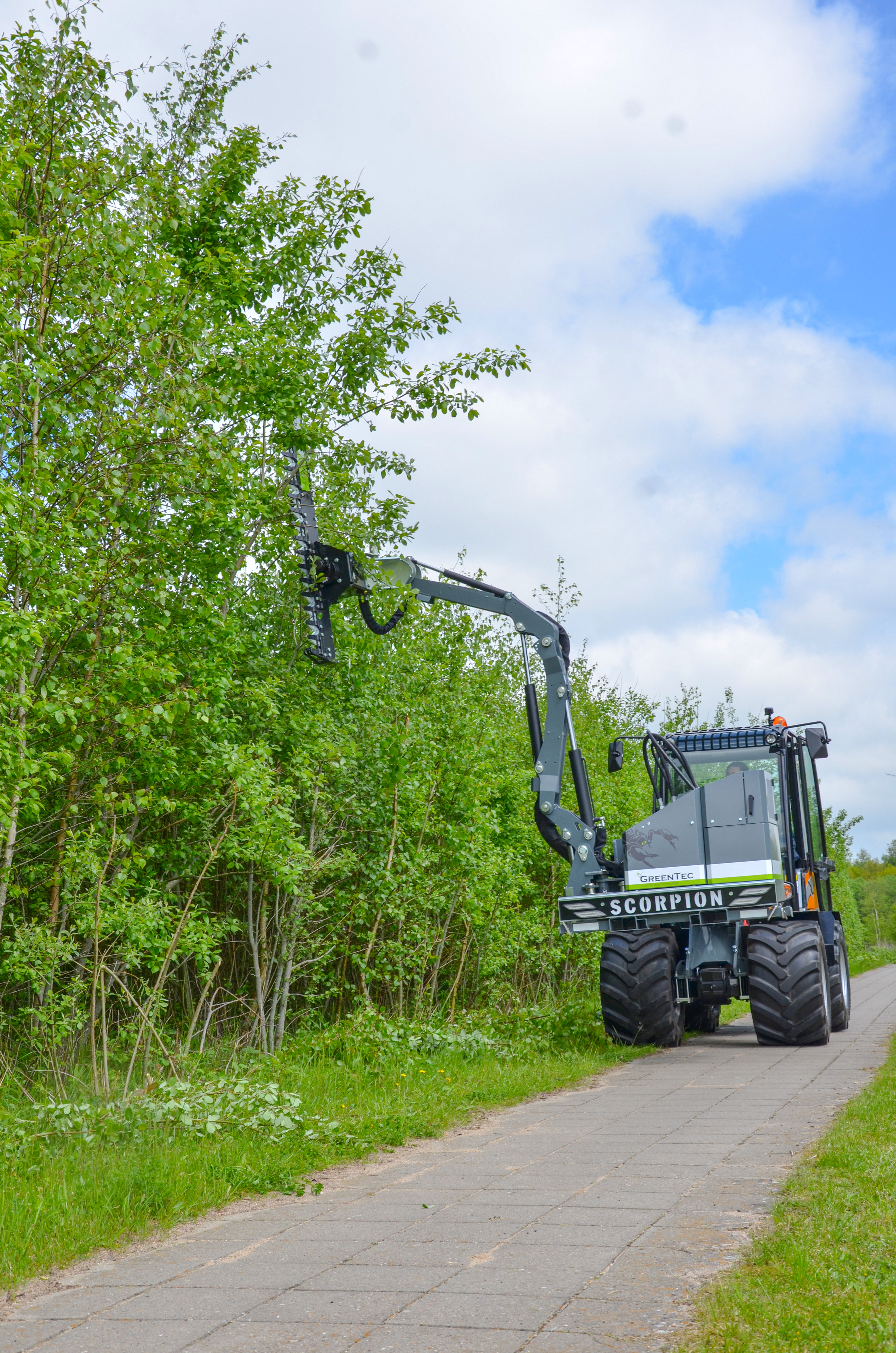

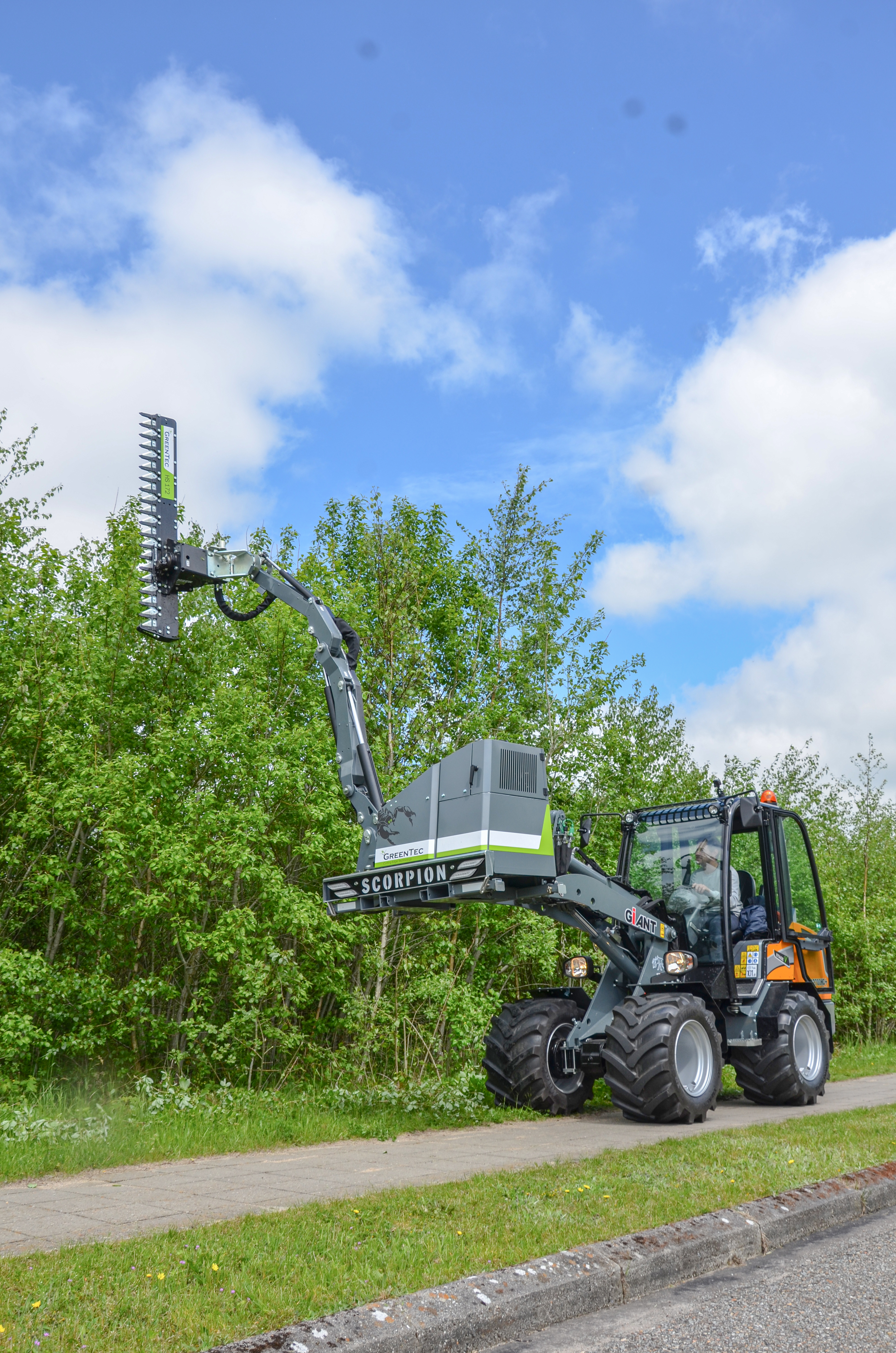

Our Scorpion 430 PLUS - Basic Front is a professional boom mower used by municipalities, agricultural contractors, forest workers, gardeners and landscapers. The small size of the boom mower makes it suitable for areas with limited space, such as verge mowing on bike paths or hedge trimming in residential areas. It is also possible to trim trees on narrow tracks in forests or maintain hedgerows on agricultural fields.
The Scorpion 430 PLUS - Basic Front boom mower is designed for loaders with a weight of at least (8500 lbs). Instead of the traditional three-point mounting, the Scorpion models have four mounting points on the mainframe. It is a much faster and reliable mounting system.
Equipment overview
| Hybrid Arm System with dual function |  Standard |
| Strenx 700 steel construction | Standard |
| 155° hydraulic turn of the arm with power control | Standard |
| Rotor Flex, double pivot joint (221° turn of cutting head and 180° cutting angle) | Standard |
| Auto Flex, automatic vertical positioning | Standard |
| Danfoss proportional valve PVG 16 | Standard |
| Mini joystick with 3 proportional functions | Standard |
| 2 oil flows: 40 and 25 l /min (10.6 and 6.6 gpm) for attachment tool | Standard |
| Hydraulic float of arm and cutting angle | Standard |
| Oil cooler | Standard |
| 4-point mounting for cat. 1 or 2 | Standard |
| Automatic Hydraulic Security (AHS) | Standard |
| Holes for pallet forks | Standard |
| Transport safety | Standard |
| LED lights | Standard |
*MAX HORIZONTAL REACH 14'1"
*MAX VERTICAL REACH 13'5"
*MIN WEIGHT OF TRACTOR 10,000 LBS
*TRANSPORT WIDTH 7' 3"
*WEIGHT OF BOOM MOWER WITH HEAD & COUNTERWEIGHTS 1741 LBS
*CUTTING CAPACITY 4.72"
*CUTTING WIDTH 5' 3"
*MAX SPEED OF TRACTOR WITH SAW 3.11 MPH
*BLADE SPEED OF SAW 2600-2700 RPM
*VERTICAL REACH WITH LOADER ARM AND BOOM MOWER COMBINED 24' 5"
